Electric Scissor Lift

Electric scissor lift (also known as an electric scissor-type aerial platform) is a height-access equipment powered by electricity and driven by a scissor linkage mechanism. It is widely used in logistics, construction, manufacturing, petrochemical industries, and other fields. Its core design is based on the kinematics of linkage mechanisms, offering advantages such as compact structure, stable lifting, and strong load-bearing capacity.

By type, the electric scissor lift can be classified as mobile electric scissor lift and stationary electric scissor lift. while by power, it can be categorized as battery power scissor lift and AC power electric scissor lifts.

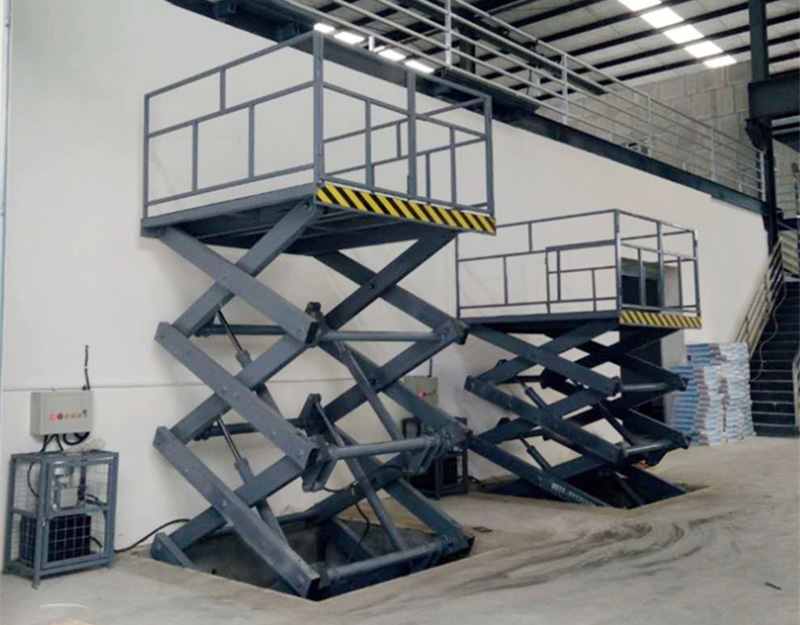

Electric stationary scissor lift for sale

The electric stationary scissor lift platform serves to transport materials or cargo between ground level and upper stories. Its design allows for pit installation, ensuring a flush surface when lowered and thus saving space. Frequently utilized in production lines and loading docks, this scissor lift can also be directly fixed to the ground floor. It functions as a specialized hydraulic elevator for lifting goods within storerooms, factories, and warehouses.

Rated Loading Capacity: 500kg-100ton

Max. Lifting Height: 6m

Type: Electric Hydraulic

Power supply: 3-phase 380V/220V

Table size: customizable

Optional features for electric stationary scissor lifts include:

• Explosion-proof electrical system
• Guide rails and guide wheels for added stability
• External hydraulic power unit for easy maintenance access
• Iron chain, gear lever, sliding door, and other accessories
• Multi-point control (available on request)
• Jog or self-assured button operation (configurable)
• Elevator operation warning light or bell
• External door open lock safety switch

Electric stationary scissor lift Parameters：

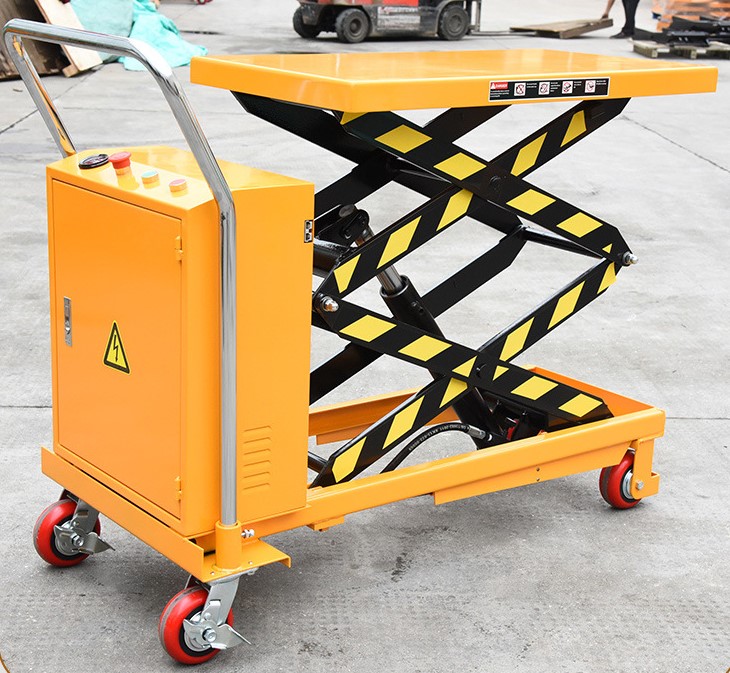

Electric battery scissor lift trolley

Constructed from robust, high-strength steel, the electric scissor lifting table boasts a well-engineered structure that ensures safety, stability, and dependability. It incorporates a built-in safety valve, a fully sealed oil cylinder, and offers battery-powered or manual hydraulic lifting options for straightforward operation. To ease user effort and protect both the load and pallet wheels, it’s equipped with nylon guide wheels. Its unique hydraulic pump design facilitates easy pumping to maintain a specific height for assembly line loading and unloading, complemented by an ergonomic design for operator comfort.

• Capacity:150kg-1000kg
• Lift Mechanism:Scissor Lift
• Lift Drive / Actuation：Electric Motor
• Power:0.8-1.6v
• Min. Lifting Height: 210mm-500mm
• Table Size:750x500x50mm-1200x610x50mm
• Weight:110kg-290kg
• Certification:CE/ISO9006

Electric battery scissor lift trolley Parameters：

Electric automatic Scissor lift

The electric automatic battery scissor lift offers efficient movement at varying heights, allowing for seamless vertical and horizontal navigation, including forward, backward, and turning, all from a user-friendly aerial platform. Constructed with high-grade structural steel using advanced laser welding techniques, it incorporates a hydraulic system featuring either an Italian or Anshan-sourced pump station and aerospace cartridge valve technology. Safety is paramount, with features like a platform level alarm, balance valve, and automatic safety alarm.

This robust and durable lift achieves a working height of up to 12 meters with a 300 kg capacity. Its extendable platform further enhances the working range. Backed by a one-year warranty and offered directly by the manufacturer, this high-quality lift is available at a competitive price, making it ideal for high-altitude operations in factory workshops, plazas, airport lobbies, and parks.

• Rated Loading Capacity: 320kg 480KG
• Max. Lifting Height: 14m
• Type: SJYZ
• Package: Wooden case
• Main Material:High duty steel
• Lift Drive / Actuation: Hydraulic electric

Electric automatic Scissor lift Parameters：

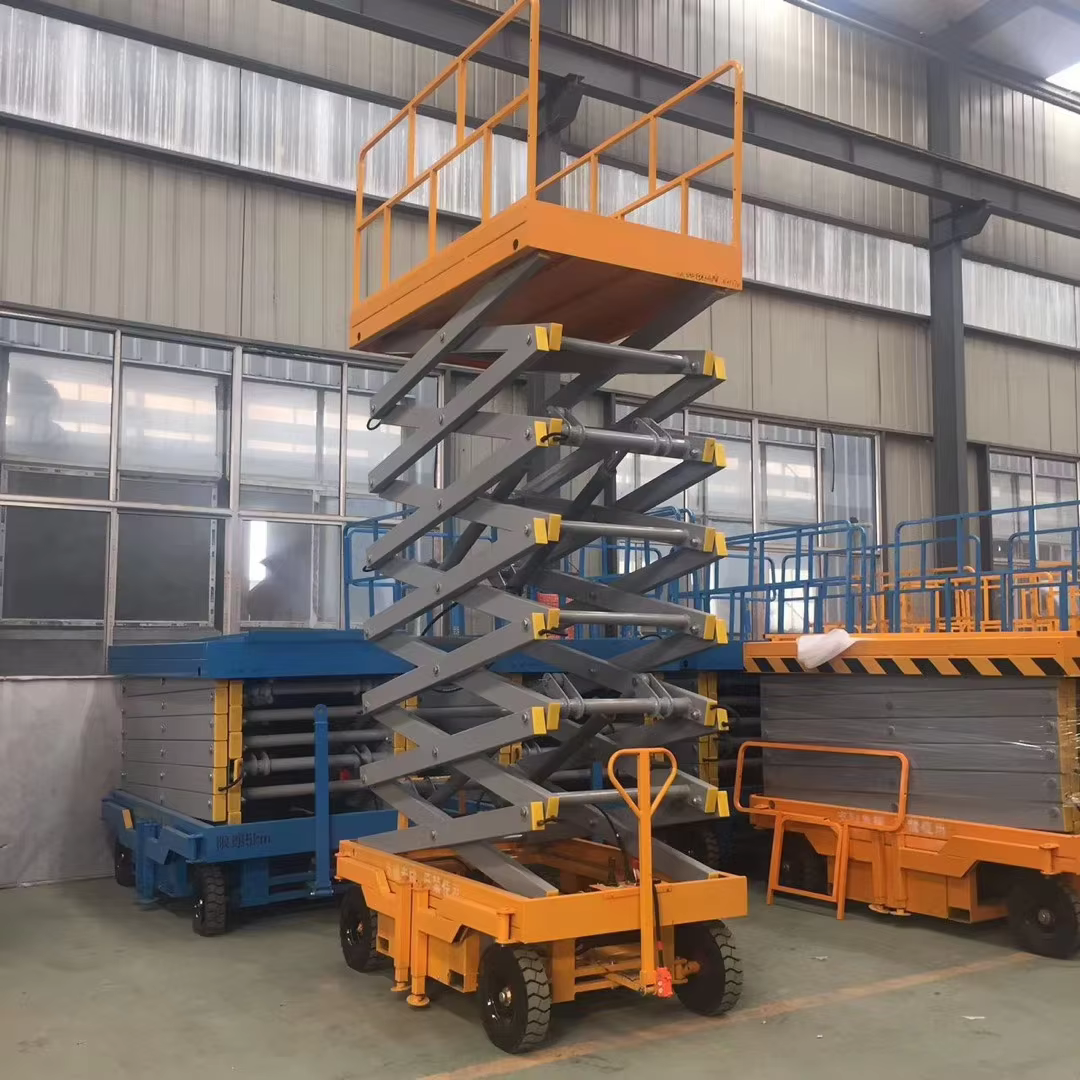

Mobile electric scissor lift manufacturer

Mobile electric scissor lifts are adaptable aerial work platforms known for their stability, provided by the scissor mechanism, and their generous working space and load capacity, enabling simultaneous multi-person operation and a wider range of tasks. They can be powered by AC, diesel, or battery, with explosion-proof versions available. Lifting from 4 to 20 meters and carrying 0.3 to 2 tons, our lifts feature dependable hydraulic pumps from Italy and domestic suppliers. The anti-slip, insulated platform surfaces ensure operator safety.

• Rated load: 300kg 500kg 1000kg 2000kg
• Lifting height：3m 6m 8m 10m 12m 14m 16m 18m 20m
• Walking mode: hand pull or assist walking
• Power supply: AC, battery, diesel, manual
• Type:Electric Hydraulic

Mobile electric scissor lift Parameters：

Below is a detailed analysis of its working principles, structural components, technical features, applications, and development trends:

I. Electric scissor lift Working Principle

The core mechanism of an electric scissor lift lies in the motion of its scissor linkage system. A motor drives a hydraulic pump or directly powers a gear transmission to extend or retract multiple sets of cross-linked arms, enabling vertical movement of the platform. Key steps include:

1. Power Transmission: The motor drives the linkage mechanism via a reducer or hydraulic system to expand/retract the scissor arms.
2. Lifting Control: Motor rotation direction (forward/reverse) adjusts elevation, with advanced models using full proportional control for precise speed regulation.
3. Safety Mechanisms: Emergency descent systems, overload protection, and anti-drop devices ensure safe shutdown or controlled descent during malfunctions.

II. Electric scissor lift Structural Components

1. Core Components:
   • Scissor Linkage: High-strength steel cross-connected arms for load-bearing (e.g., 120–650 kg capacity).
   • Drive System: Includes motors, hydraulic pumps, or electric cylinders; some models use lithium batteries or explosion-proof motors for specialized environments.
   • Control Module: Integrated fault diagnostics and sensor feedback.
2. Auxiliary Structures:
   • Platform & Chassis: Customizable platform sizes (common: 1.28×0.76m to 3.21×1.16m) and compact chassis designs for tight spaces (e.g., 0m inner turning radius).
   • Safety Devices: Tilt switches, load sensors, explosion-proof hydraulic lines, and non-slip tires.

III. Electric scissor lift Technical Features

1. Efficiency & Energy Savings:
   • Low-noise, zero-emission electric drives; up to 8-hour runtime with fast charging.
   • Emerging lithium-ion battery adoption for enhanced efficiency.
2. High Load Capacity & Stability:
   • Platforms distribute weight evenly, maintaining stability even at heights (e.g., 12.5m working height).
3. Smart & Safe Operations:
   • Equipped with pit detection technology to enhance operational safety.
   • Intelligent interactive system, easy to obtain device status (location, working condition information, and abnormal warning).

IV. Electric scissor lift Applications

1. Industry & Logistics: Material handling, warehouse stacking, and equipment maintenance (e.g., GTJZ08 model for indoor/outdoor flat surfaces).
2. Construction: High-rise building façade work and installations (e.g., 12m platform height).
3. Specialized Environments:
   • Petrochemical & Military: Explosion-proof models with flame-resistant components.
   • Healthcare & Vehicle Repair: Anti-slip platforms for medical facilities or automotive repair.

V. Electric scissor lift Trends

1. Smart Upgrades: IoT integration for remote diagnostics and predictive maintenance.
2. Eco-Friendly Designs: Lithium batteries and low-energy hydraulic systems to reduce carbon footprints.
3. Customization: Modular platforms tailored for corrosion resistance, explosion-proof needs, etc.

Electric scissor lifts are indispensable in modern aerial operations due to their efficiency, safety, and adaptability. Future advancements in smart technologies and green energy will expand their applications. Users should select models based on load, height, and environmental requirements . Their broad applications and continuous technological advancements make them indispensable in modern industrial and logistics sectors.
